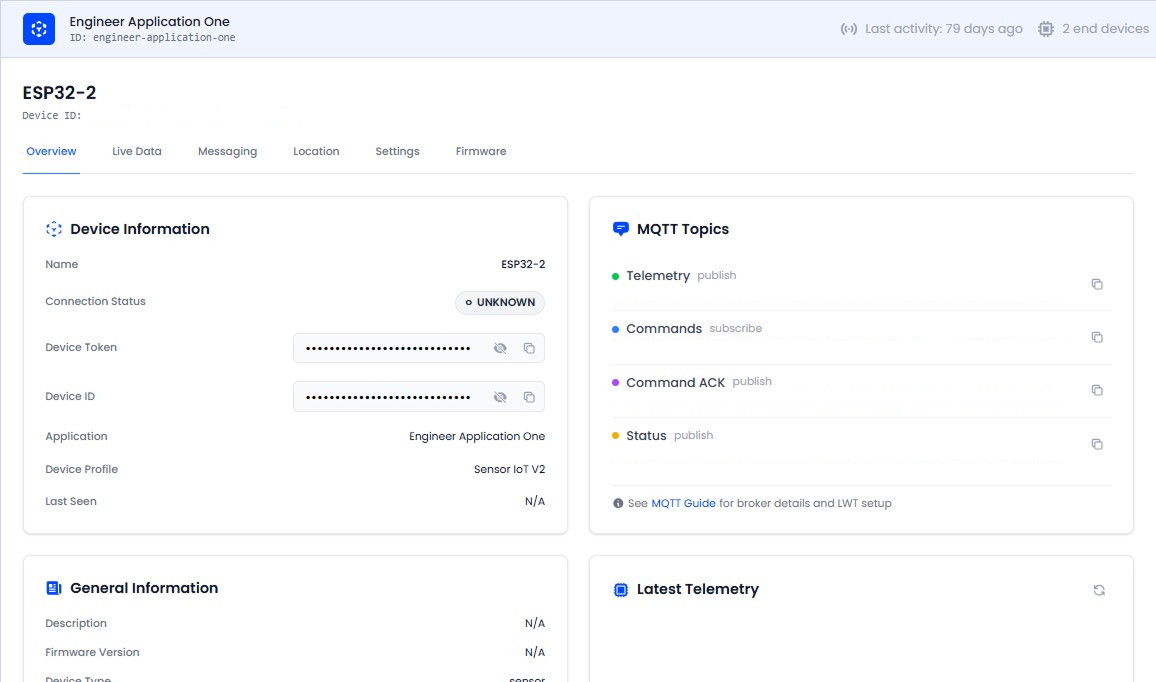

Device Detail

The device detail page provides comprehensive management through multiple tabs.

Overview Tab

The default view shows:

• Device Information - Name, status, token, ID, application, and profile
• MQTT Topics - Telemetry, commands, ACK, and status topics with copy buttons
• General Information - Description, firmware version, device type, creation date
• Latest Telemetry - Key-value list of the most recent readings, with a raw JSON toggle
• Location Map - If GPS coordinates are configured, an interactive map is displayed

Live Data Tab

A real-time message stream for this specific device. Decoded telemetry appears as messages arrive via WebSocket.

Location Tab

Set or update the device's GPS coordinates:

• Click on the interactive map to set a location
• Or enter latitude and longitude manually
• Click Save to persist the location to device metadata

Messaging (Commands) Tab

Send commands to the device and track their lifecycle:

• Enter a command name and optional JSON parameters
• View command history with status tracking
• Expand rows to see parameters, response payload, and errors
• Command lifecycle: PENDING → SENT → ACKNOWLEDGED / FAILED / TIMEOUT

Firmware Tab

View firmware information and OTA update history for this device:

• Current firmware version
• OTA update history with campaign name, firmware version changes, status, and timestamps

Payload Formatter Tab

Override the device profile's payload decoder at the device level:

• JavaScript code editor for custom transformation logic
• Test the decoder with sample payloads before saving

Settings Tab

• Edit device name, firmware version, and description
• Device Mobility: Configure whether the device is stationary or mobile (affects location tracking behavior)
• MQTT Credentials: View/copy device token, regenerate token, generate new password
• Danger Zone: Delete the device permanently
